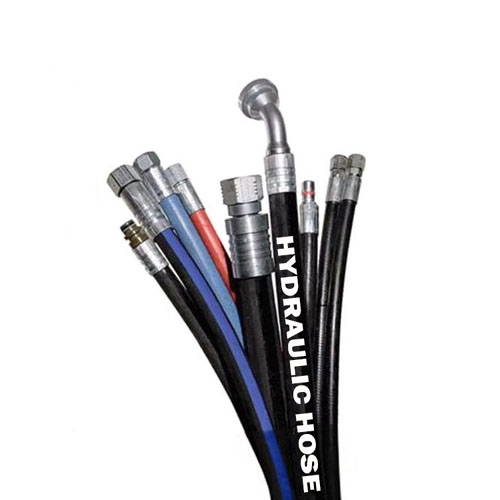

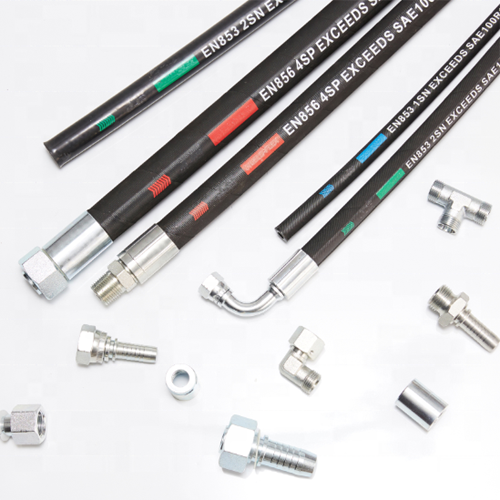

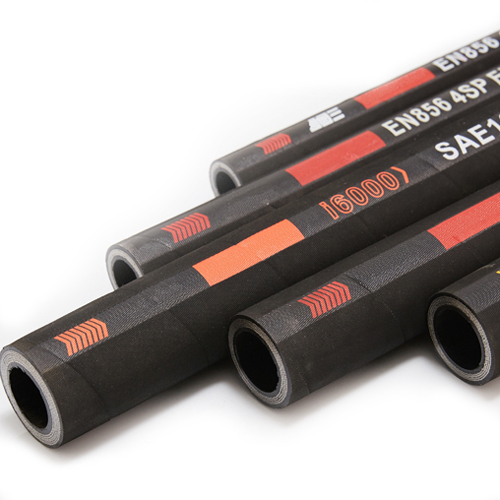

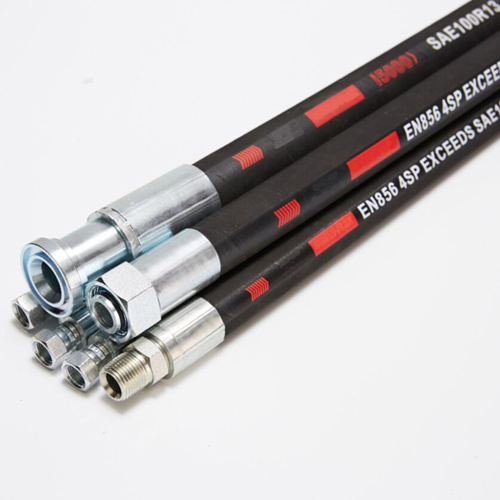

High pressure rubber Hose 1SN 2SN 1SC 2SC 4SH 4SP

Product Description:

High Pressure Hydraulic rubber Hose was used for synthetic mining, equipment of hydraulic hold and transport pressure for hydraulic system transport high pressure liquid and hydraulic conveying for engineering project, over-loading transportation, metallurgy forging and pressing, mining equipment, ships, plastic-filling machines, all kinds of machines and the mechanization of industrial sectors, automation system. The medium which it transports is hydraulic oil, fuel oil, lubricant and air.

Specification: 1SN, 2SN, 1SC, 2SC, 4SP, 4SH, etc.

Tube: High temperature,High impact synthetic rubber

Reinforcement:One or Four  high tensile wire braid or wire spiral

Cover: Abrasion and weather resistant synthetic rubber

Temperature range:-40℃to +100℃

Feature:

1.The layer is made of the special kind of synthetic rubber , which has the properties of oil-resistance, heat-resistance, and aging-resistance.

2.The tube can bear high pressure having the superior pulse property.

3.The tube combination is close, soft, hard to transform under pressure, the hose has the properties of anti-bending and anti-fatigue.

4.The hose is very long. The length can reach tens of meters or even over 100 meters.

Packing and delivery:

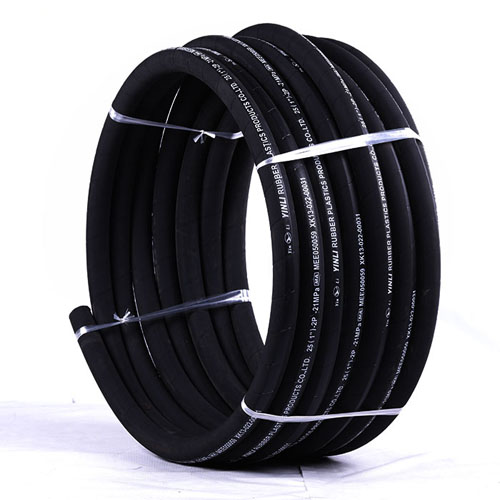

The hose is packed by plastic film, exactly number of hoses is packed in the carton, wooden case available, we can make the package as the customers' requirements, SAE100 R1AT / SAE100 R2AT 1/4 inch to 1 inch each roll is 100m, SAE100 R1AT / SAE100 R AT 1-1/4 inch to 2 inch each roll is 40m, DIN EN 856 4SH/4SP 3/8 inch to 1 inch each roll is 50m, DIN EN 856 4SH/4SP 1 inch to 2 inch each roll is 40m.
